J2 SSD-D60 ULTIMATE Combo
Watch the Overview video below.
GCM Overview Video Link
This is the ULTIMATE combo for your 2dr JK hardbody! Designed to complete your build from the ground up, we include the needed suspension links and brackets, as well as the full J2 chassis kit to assemble under your Jeep 2DR Hardbody for a perfect match. GCM has done all the research and design and made the assembly easy for you. Add your SSD-D60 Plastic axle housings and SCX transmission, and you're almost done!
This ULTIMATE Combo includes all the parts listed below:

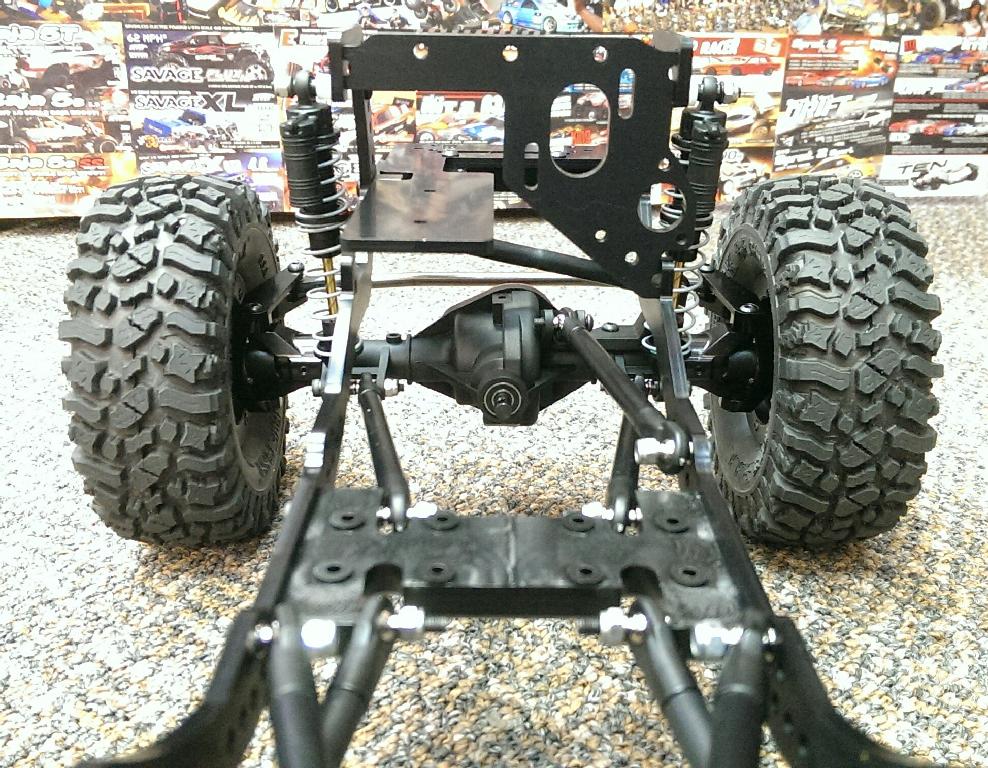

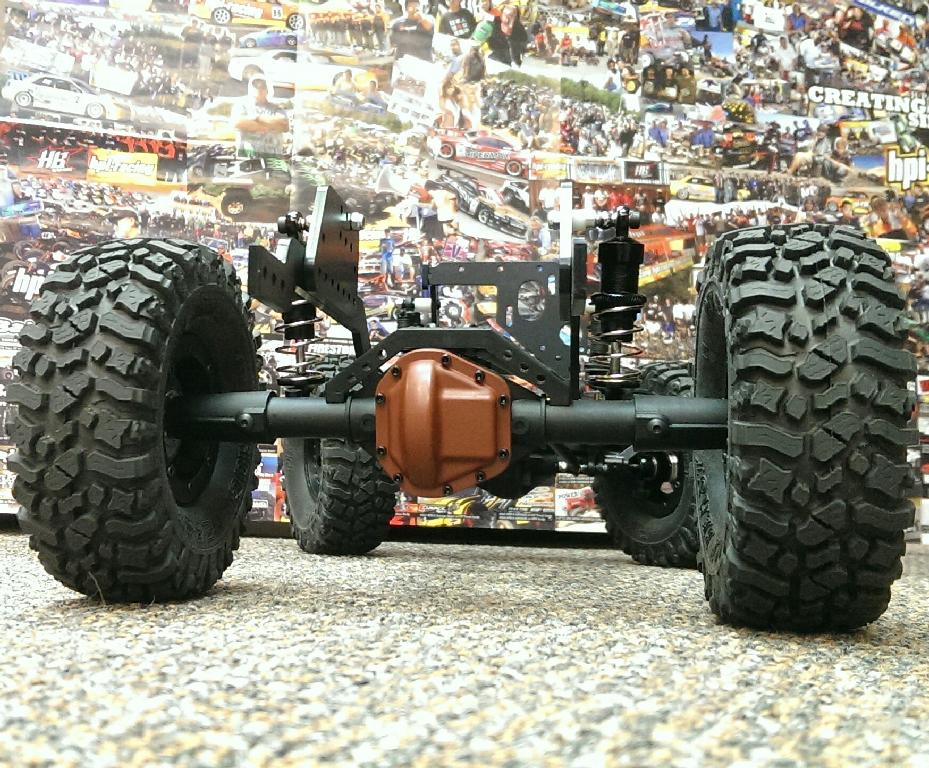

Skeleton J2 Chassis Combo kit, front motor transmission mount, frame mounted servo bracket, dual servo or radio tray option, rear shock towers, center Delrin machined skidplate with link mounts, complete GCM 1:1 Transfer Case, hex hardware.
J2 Panhard Bracket for frame side with hex hardware.
J2 SSD Complete Steel Link kit for 10.625 wheelbase JK body including rod ends and hardware.
All parts are Black finish.
To build a complete truck, this Ultimate Combo requires the following parts:
Steering Tierod and Drag Link to match your knuckle choice
Axial AX30487 transmission and spur assembly
SSD-D60 Plastic axle housings
front and rear
Rims and tires
Front Scale Shocks 70-95mm length
Rear Scale Shocks 75-60mm length
Front drive shaft 100mm total length
Rear drive shaft 85mm total length
Trans to Tcase shaft 71mm total length
Jeep JK 2DR hardbody
Bumpers of choice
Electronics of choice
Body and bumper and battery mount options available at our GCM Racing ShapeWays store Here at this link !
Just as our CrossCanyon Chassis kit was designed to fit the NewBright Jeep 4dr Unlimited body, this new J2 Chassis was designed specifically for the E-Bay 2dr JK Rubicon Hardbody (with opening doors), because it required a special frame profile to match the full scale interior in the new 2dr JK body. With a perfect fit available, there's no limit to the JK 2dr setups you can achieve using this Skeleton J2 chassis!
Using the J2 Chassis with this great JK hardbody, you can also add on just about any of the popular aftermarket SCX Rail mounting bumper options with little effort. We trimmed down the long mounting brackets on these RC4WD Rampage bumpers (shown in our pictures) and they mounted inside the J2 rails just perfectly for a super scale look!
If your Transfer Case is too tight after assembly, knock the end of the shaft with a quick tap on all 3 shafts. This works GREAT to seat the bearings in the case.
