CMAX Ultimate XJ Jeep Kit

CMAX Ultimate XJ Jeep Kit Image
Detail Image
Detail Image
Detail Image
Detail Image

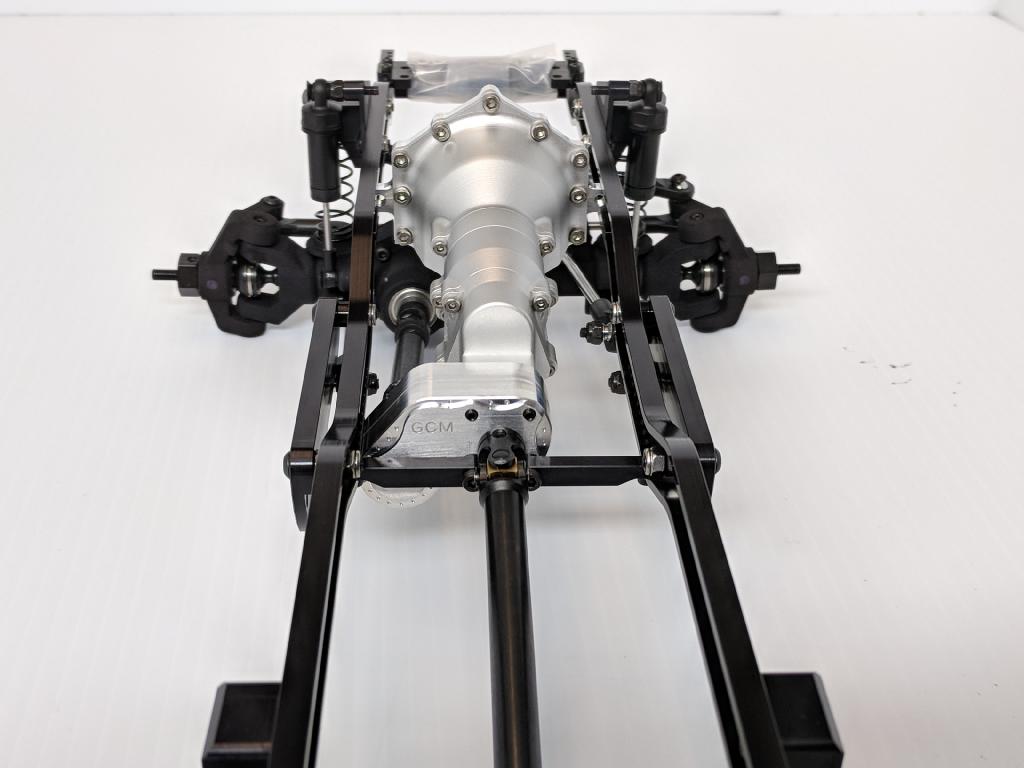

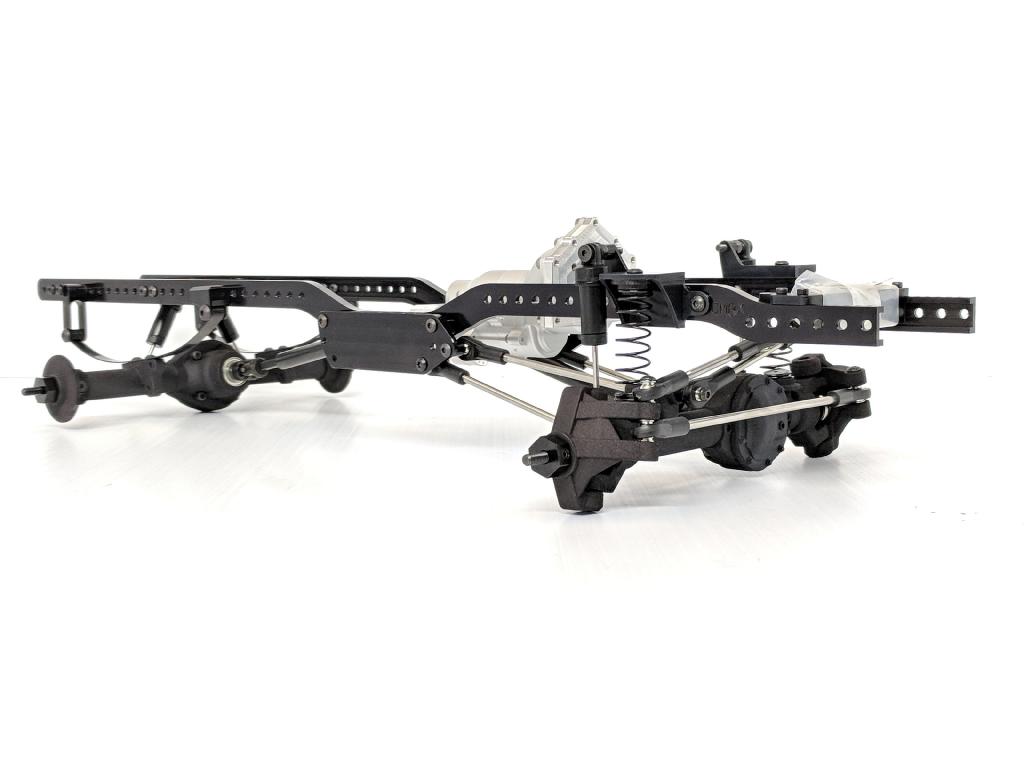

Are you ready for a new All Coil Sprung AND Leaf sprung Scale truck build? This brand new kit will combine the proven Front Coil Spring and shock setup with rear Leaf Springs made just for the XJ Hardbody Jeep builds. It's got a full ladder frame, C-channel design, with a Steel geared scale driveline and transfer case, along with EPIC amounts of adjustment.
This package is perfect for the XJ Jeep builders. The setup is geared towards using our TM8 axle housings in the front and rear, as well as the popular ECX213000 shock set. Combine that with the -made-to-fit- XJ Mounts Combo Kit Here at this link and our TM8 Axle kit for the XJ Here at this link from our Shapeways store so you can mount it all up and get it rolling fast.

Scale Motors are available to slide over your 540 size motor Here at this link.

This CMAX Ultimate Kit includes all the essence of a Scale Truck build. In your package you'll find the following items:

Left and Right Chassis Rails, 19.7 inches long
Front Servo Mount
Front Frame Shock Mounts with Coil Bucket
Front lower, upper, and track bar links for TM8 Axle sets
Front 540 size Motor Mount Plate
GCM LowRange Scale Transmission, Steel Gear, 14.3 Gear Ratio
LRT2 Transfer Case, 1.11 Overdrive Front Output
Transfer Case Cross Member
Frame Center Cross Member
Link Mount Chassis Plates
Frame Rear Cross Member/Rear Shock Mount

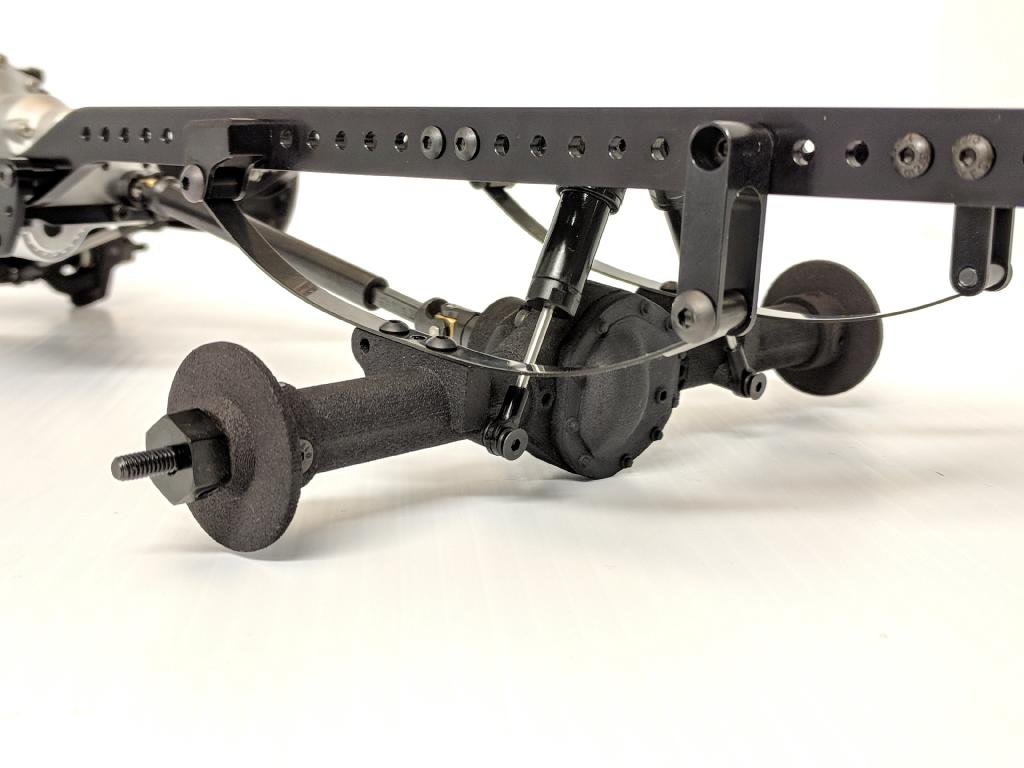

Rear Leaf Spring mount, and swing hanger
Includes All Hex Hardware, 12t Pinion Gear for 1/8 motor shaft, All steel drivetrain gears and shafts, and all aluminum mounts and rails.

To complete this coil spring build, we recommend:
2 Coil Spring AX31442, (1 bag)
TM8 Axles with Coil Buckets or CMAX Coil Pad kit for your axles (in this section)

Our Favorites for this build:

1. We recommend ECX213000 shocks for this kit, which provide the perfect amount of travel, don't leak, and are already filled with oil. Simply remove the coil spring and spring seats, and install on the truck. Very nice little shocks.
2. We recommend Axial SCX10 shock springs for these spring cups. Many others work as well, but these are very easy to get and have multiple spring rates.
3. We recommend Tamiya spring #9808091 for Rear springs. Tamiya helper springs are available in part number group #58372

Your Price:C$456.00
