This is the ULTIMATE combo for your 2dr JK hardbody! Designed to complete your build from the ground up, we include the needed suspension links and brackets, as well as the full J2 chassis kit to assemble under your Jeep 2DR Hardbody for a perfect match. GCM has done all the research and design and made the assembly easy for you. Add your SCX Transmission and RC4WD axles and you're almost done!

Watch the Assembly videos Here at this link

This ULTIMATE Combo includes all the parts listed below:

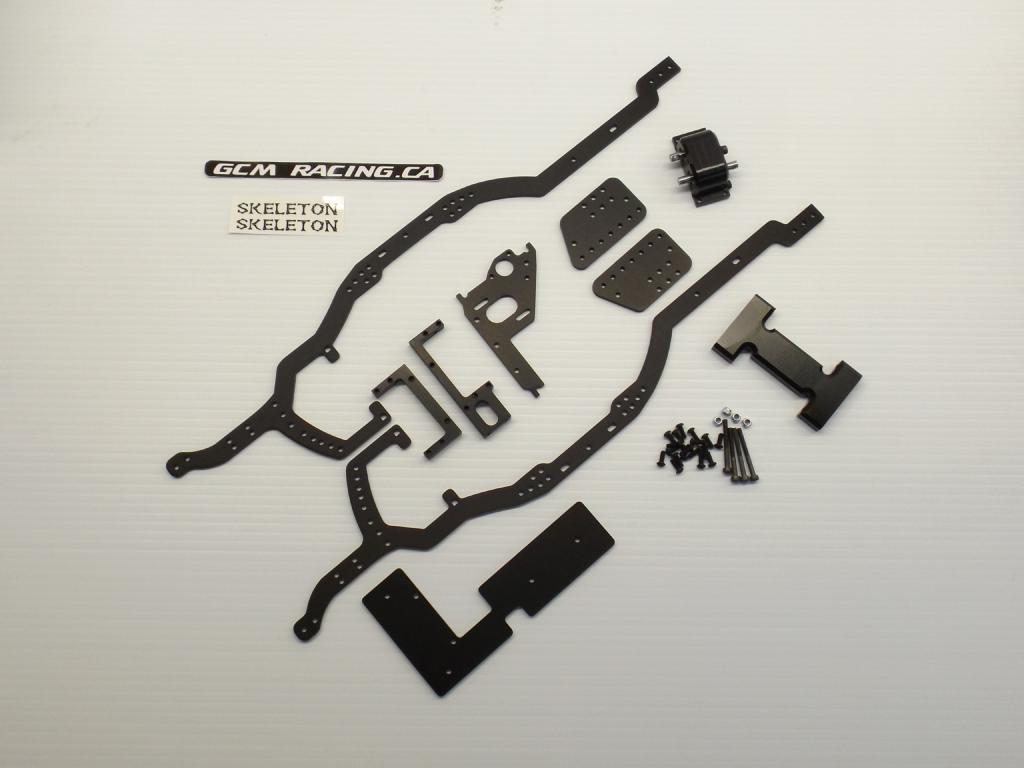

Skeleton J2 Chassis Combo kit, front motor transmission mount, frame mounted servo bracket, dual servo or radio tray option, rear shock towers, center Delrin machined skidplate with link mounts, complete GCM 1:1 Transfer Case, hex hardware.

J2/RC4wd Panhard Bracket for frame side and RC4wd front axle with hex hardware.

J2/RC4wd Complete Steel Link kit for 10.625 wheelbase JK body including rod ends and hardware.

All parts are Black finish.

To build a complete truck, this Ultimate Combo requires the following parts:

Steering Tierod and Drag Link to match your knuckle choice

Axial AX30487 transmission and spur assembly

RC4wd axle housings front and rear, (Suggest Yota 2 axles or machined K44)

RC4wd axle link Mount kit Z-S0795 for front and rear

Rims and tires

Front Scale Shocks 70-95mm length

Rear Scale Shocks 75-60mm length

Front drive shaft 94mm total length

Rear drive shaft 103mm total length

Trans to Tcase shaft 71mm total length

Jeep JK 2DR hardbody

Bumpers of choice

Electronics of choice

Body and bumper and battery mount options
available at our GCM Racing ShapeWays store Here at this link !

Just as our CrossCanyon Chassis kit was designed to fit the NewBright Jeep 4dr Unlimited body, this new J2 Chassis was designed specifically for the E-Bay 2dr JK Rubicon Hardbody (with opening doors), because it required a special frame profile to match the full scale interior in the new 2dr JK body. With a perfect fit available, there's no limit to the JK 2dr setups you can achieve using this Skeleton J2 chassis!
Using the J2 Chassis with this great JK hardbody, you can also add on just about any of the popular aftermarket SCX Rail mounting bumper options with little effort. We trimmed down the long mounting brackets on these RC4WD Rampage bumpers (shown in our pictures) and they mounted inside the J2 rails just perfectly for a super scale look!

If your Transfer Case is too tight after assembly, knock the end of the shaft with a quick tap on all 3 shafts. This works GREAT to seat the bearings in the case.

Your Price:C$339.00
